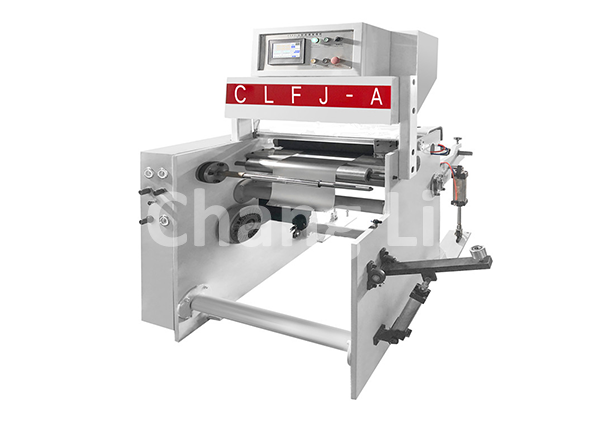

CLFJ-A型高速複卷機
發布日期:[2018-12-26] 點擊率:
用途:
該機是生產硬紙芯、軟紙芯、等小卷筒紙(禮品紙、廣告紙、牆紙、各種包裝紙)的專用設備。
特點:
放卷:氣壓提升式放卷架、連體式放卷架等
收卷:連續式氣漲軸、電腦控製自動充氣與打開(可任意調節收卷軸直徑)
切斷:采用無杆汽缸往返式自動隔斷
主控:伺服電機定長送料,在高速運轉中保存高精度
具有定長精度高,收卷整齊,操作簡便,外型美觀,性能穩定等功能,還可以和全自動收縮包裝機配套形成生產線。
use:
This machine is a special equipment for producing hard paper core, soft paper core, and other small webs (gift paper, advertising paper, wallpaper, various wrapping paper).
Features:
Unwinding: air pressure lifting unwinding frame, one-piece unwinding frame, etc.
Winding: continuous air-up shaft, computer controlled automatic inflation and opening (can adjust the reel diameter arbitrarily)
Cut off: use rodless cylinder reciprocating automatic partition
Main control: Servo motor fixed length feeding, high precision during high speed operation
It has the functions of high fixed length precision, neat winding, simple operation, beautiful appearance and stable performance. It can also form a production line with automatic shrink packaging machine.
主要技術參數 Main Technical Parameters
機型 Model | CLFJ-A600 | CLFJ-A800 | CLFJ-A1000 | |
卷材寬度 MAX.Parent Web Width | 600mm | 800mm | 1000mm | |
放卷直徑 Max.parent Web Diameter | Φ600mm | Φ600mm | Φ600mm | |
收卷直徑 Max.Rewinding Diameter | Φ260mm | Φ260mm | Φ260mm | |
速度 Max.Machine Speed | 10-150m/min | 10-150m/min | 10-150m/min | |
定長精度Fixed length accuracy | ±5mm | ±5mm | ±5mm | |
總功率 Total Power | 2KW | 2.3KW | 3KW | |
重量 Machine Weight | 1000kg | 1200kg | 1500kg | |
外形尺寸 Overall Dimensions 工作電壓 Working Voltage | 1300×1380×1600mm 二相220V50HZ | 1300×1600×1600mm 二相220V50HZ | 1300×1800×1600mm 二相220V50HZ | |
紙芯規格Paper core specification | 20mm, 25mm, 38mm等(or according to your requirement) | |||
